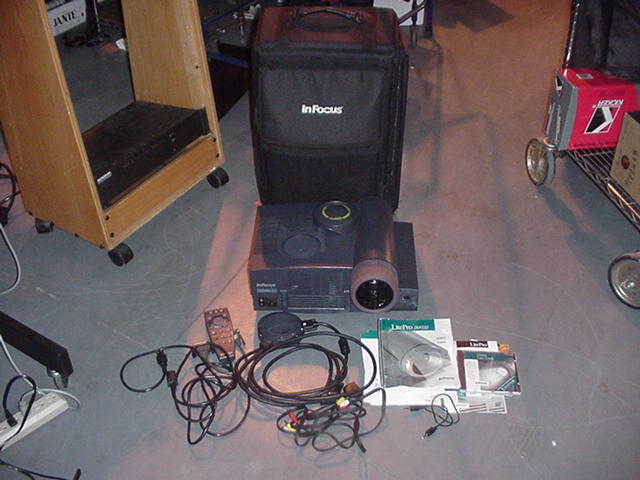

Lite Pro 220 by InFocus

LP220 Technical Specifications

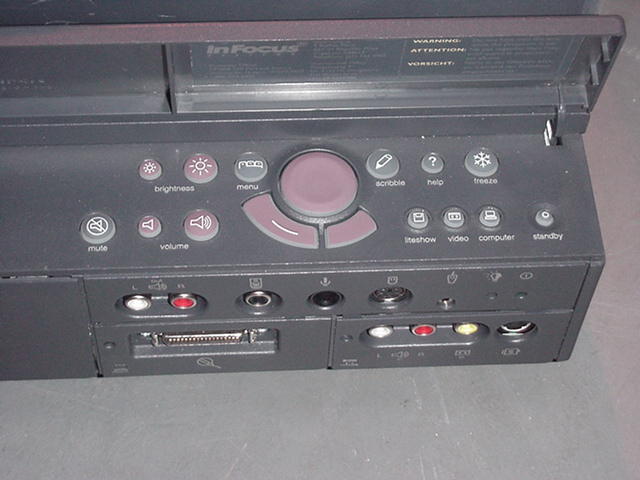

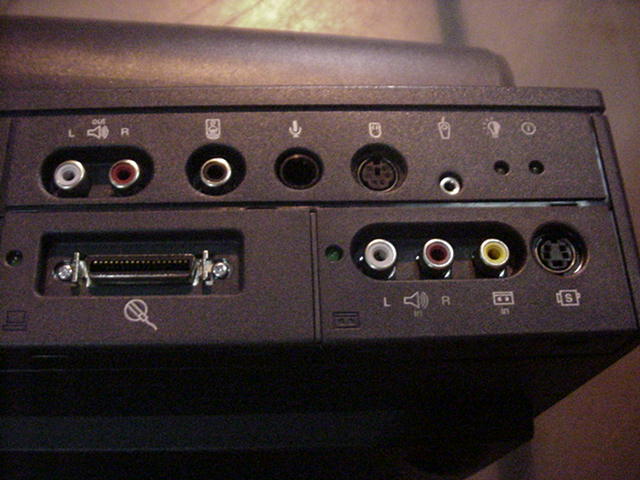

[Display] [Compatibility] [Connections] [Controls] [Physical] [Electrical] [Software]  Display Specification Type 6.4 inch/16.25cm active matrix TFT LCD Resolution 800 x 600 SVGA with intelligent compression for 1,024 x 768 SVGA Brightness 250 lumens ANSI 9-point measurement Contrast Ratio 200:1 Colors 16.7 Million Zoom Lens Range (optional zoom) 1:1.4 from wide-angle to telephoto. manual zoom & focus. Zoom Lens Projection Ratio (optional zoom) Wide-angle 1:1 Telephoto .7:1 (Diagonal Image Size:Distance from screen) Zoom Lens Focus Range (optional zoom) 4 ft. - infinity (1.2m - infinity) Fixed Lens Projection Ratio (varifocal lens) .7:1 (Diagonal Image Size:Distance From Screen) Fixed Lens Focus Range (varifocal lens) 4 ft. - 30 ft. (1.2m - 9.1m) Aspect Ratio 4:3 Keystone Correction User adjustable ± 12° Lamp 270-watt Metal Halide with 700 hrs life. User replaceable.   Compatibility Specification Computer Compatibility PC & Mac Computer Compatibility Method Plug-and-project auto synchronization, auto tracking, auto positioning, auto source detect. Computer Compatibility Range 1,024 x 768  50-75Hz (compressed)* 800 x 600, 640 x 480 50-100Hz *Resolutions higher or lower than 800 x 600 will be resized to fill the screen when Auto Resize is enabled in the projector menu. Set the computer source to 800 x 600 resolution to achieve optimal projection quality. Video Compatibility LP-0220-Z, LP-0220-V (NTV video card): NTSC M, NTSC 4.43, PAL B/G, SECAM M (NTSC resized to fill entire screen) LP-0220-E (BTV video card): NTSC M, PAL B/G, SECAM M (NTSC not resized, fills 640 x 480 image area) LP-0220: No video module installed. Unit can be upgraded to add video.   Connections Specification Computer Input, Computer Audio Input, Computer Mouse Output 1 computer input using In Focus CableWizard System. CableWizard includes computer audio input, mouse input, monitor output. 36-pin IEEE-1284 type connection. Computer Mouse Input (loop-through) PS/2, 5-pin receptacle Composite Video Input (video module required) RCA Receptacle (Yellow) S-Video Input (video module required) Round Mini-Din, 4-pin Receptacle Video Stereo Audio Input (video module required) Left: RCA Receptacle (White) Right: RCA Receptacle (Red) Stereo Audio Line Output Left: RCA Receptacle (White) Right: RCA Receptacle (Red) Microphone Input 1/4 in. (6.3mm) mono phone jack, unbalanced Subwoofer Output RCA Receptacle (Black) Wired Remote Input 2.5mm stereo micro-jack Kensington Lock Kensington lock compatible feature allows addition of anti-theft cable.   Controls Specification Power Switch Toggle switch next to AC input jack. User Interface (on-screen menu controls) See LP210/220 User Guide Keypad See LP210/220 User Guide Remote Control Controls computer mouse and projector functions. See LP210/220 User Guide Elevator Release Single button releases elevator foot. When depressed, allows adjustment of projection angle. When released, projector stays locked in this position. Tilt Foot One rear foot has a screw-type adjustment to allow the projector side-to-side tilt to be adjusted. LED indicators See LP210/220 User Guide   Physical Specification Size 6.6 in. (h) x 16.25 in. (w) x 13.25 in. (l) 16.8cm (h) x 41.3cm (w) x 33.7cm (l) Weight 16 lb. (11 kg)   Electrical Specification Power Consumption 425watts Power Supply 100-240V 50-60Hz Composite TV Input 1.0Vp-p, 75W S-Video TV Input Luminance: 1.0Vp-p, 75W Chrominance: 0.286Vp-p, 75W Stereo Audio Input 142mV-rms, 47KW Maximum Input Voltage: (LIN + RIN)PEAK < 4.5 V for THD .3%, microphone off LIN or RIN < 2.0 Vrms for THD .3%, microphone off Audio Line Output 142mV-rms, 600W Frequency Response: 10 Hz - 20 kHz Output Impedance: 1.2 K ohm nominal Output Voltage: 2 Vrms maximum (open circuit) Subwoofer Output Frequency Response:10 Hz - 10 KHz Output Impedance: 200 ohms nominal Output Voltage: 2 Vrms maximum (open circuit Audio System Full-range JBL speakers, 10 watts per channel Frequency response: 100 Hz - 15 Khz ± 3 dB Total harmonic distortion: less than 2.5% Wired Remote Input TTL input levels Remote Range 15m (50ft) at 0 degrees to front or rear of unit 9m (30ft) at +/- 45 degrees   Software Specification FLASH ROM Software is serial Downloadable & Upgradeable using IFS provided PC application. See System Software User Interface See LP210/220 User Guide
